Introduction
Solar energy has become an important part of the global move toward cleaner and more reliable electricity. From residential rooftops to large solar farms, photovoltaic (PV) systems need dependable electronic components to maintain performance in changing weather conditions. One important component is the bypass diode, which helps protect solar panels when individual cells receive less sunlight than others. Schottky bypass diode modules offer a practical solution for reducing power losses and supporting reliable solar installations.
Good-Ark is a diode manufacturer with a long history of development, technical experience, and a strong focus on customer relationships. As the company continues to expand its global presence, its expertise in diode technology is relevant to the growing solar power industry. By understanding how Schottky bypass diode modules work and what makes them suitable for photovoltaic applications, solar manufacturers and system designers can make better decisions when selecting components for efficient, durable, and dependable solar panels.
Understanding Schottky Bypass Diode Modules

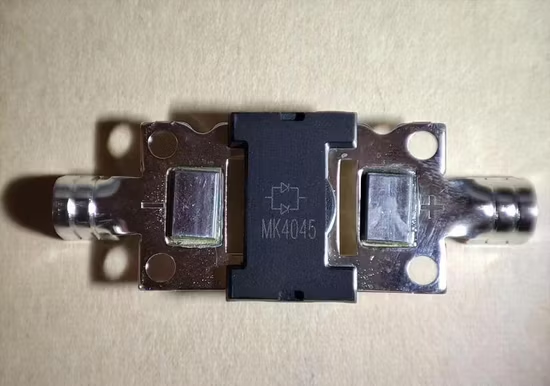

Schottky bypass diode modules are electronic components designed to help photovoltaic systems maintain operation when some solar cells produce less electricity than others. A solar panel contains interconnected cells that generate direct current when exposed to sunlight. However, shadows from trees, buildings, dust, or nearby equipment can reduce the output of certain cells. When cells in a series-connected string produce different amounts of current, the weaker cells can become reverse-biased and develop hot spots. A bypass diode provides an alternative path for current, helping reduce these risks.
Schottky diodes are especially useful in this application because they generally have a lower forward voltage drop than conventional silicon PN-junction diodes. This characteristic can reduce the energy lost as heat while current passes through the diode. Schottky bypass diode modules combine this useful switching behavior with a package designed for particular solar panel requirements. Their performance depends on factors such as current rating, reverse voltage rating, thermal resistance, package design, and operating temperature. Selecting the correct module helps manufacturers balance electrical efficiency, thermal performance, and long-term reliability.
Why Bypass Diodes Matter in Solar Panel Performance
Solar panels do not always receive uniform sunlight. Partial shading, fallen leaves, dirt, and seasonal changes can affect individual cells or groups of cells. Without a suitable bypass path, a shaded cell may restrict current through a series-connected string and experience excessive heating. This condition can reduce power production and potentially damage the panel over time. Bypass diodes help address this problem by allowing current to flow around an affected section when the electrical conditions activate the diode.
For solar installations, this protection supports more stable operation under real-world conditions. Bypass diodes do not eliminate every effect of shading, and they cannot restore all the electricity that a shaded panel would otherwise generate. However, they can limit certain losses and reduce the risk of damaging hot spots. Properly designed Schottky bypass diode modules can also help minimize conduction losses when bypassing occurs. For manufacturers serving residential, commercial, and utility-scale solar markets, these characteristics make diode selection an important part of photovoltaic module design and quality control.
Key Advantages of Schottky Diode Technology
A major advantage of Schottky diode technology is its low forward voltage drop. When a diode conducts, some electrical energy becomes heat. A lower forward voltage drop can reduce this loss, although the actual result depends on current, junction temperature, and the selected device. In solar panels, where efficiency and heat management matter, choosing a diode with suitable electrical characteristics can contribute to better overall performance. Schottky devices also offer fast switching behavior, although switching speed may be less important than forward conduction and thermal performance in many conventional bypass applications.
Another important consideration is the balance between efficiency and durability. Schottky diodes can have higher reverse leakage current than comparable silicon PN-junction diodes, particularly at elevated temperatures. Designers must therefore consider the complete operating environment rather than focusing on one specification alone. Reverse voltage capability, surge conditions, heat dissipation, and the module’s construction all influence suitability. Good-Ark’s experience in the diode industry provides a relevant foundation for customers evaluating semiconductor components for demanding applications. For specific solar projects, engineers should review the manufacturer’s current datasheets and confirm that the selected device meets the panel’s electrical and environmental requirements.
How Good-Ark Supports Solar Component Selection
Good-Ark has developed from a small factory into an established diode enterprise through years of manufacturing experience, employee dedication, and cooperation with customers and suppliers. The company’s development reflects a commitment to building lasting business relationships and improving its position in international markets. This background is relevant to solar equipment manufacturers seeking dependable semiconductor component suppliers. Reliable sourcing involves more than comparing prices; it also requires clear technical information, consistent quality expectations, and communication throughout product development and production.
When evaluating Good-Ark for Schottky bypass diode modules or related diode components, customers should identify their application requirements and request the appropriate technical documentation. Important details include the rated forward current, repetitive peak reverse voltage, forward voltage characteristics, reverse leakage current, thermal resistance, and operating temperature range. Package dimensions and mounting arrangements must also match the solar junction box or intended assembly. Good-Ark’s customer-focused approach and long-term development goals provide a useful basis for supplier discussions, while product-specific performance should always be confirmed through datasheets, samples, qualification testing, and agreed quality standards.
Choosing Reliable Schottky Bypass Diode Modules
Selecting the right Schottky bypass diode module begins with understanding the solar panel’s electrical design. Engineers should determine the maximum current that may pass through the bypass path and the reverse voltage the diode must withstand under expected conditions. They should also consider temperature extremes, possible current surges, and the effect of heat inside the junction box. A diode that meets the basic electrical ratings may still be unsuitable if its thermal characteristics or package design do not fit the application.
Manufacturers should also consider long-term reliability and compliance requirements. Testing under representative electrical and environmental conditions can help reveal potential weaknesses before products reach the market. Solar modules operate outdoors for many years, so resistance to temperature cycling, humidity, and other environmental stresses is important. Proper installation, suitable heat management, and careful assembly further support dependable operation. Working with an experienced supplier such as Good-Ark can help manufacturers gather the technical information needed for informed decisions. By combining suitable component selection with strong quality assurance, solar companies can build photovoltaic products designed for consistent performance and a longer service life.
Conclusion
Schottky bypass diode modules play an important role in protecting photovoltaic cells and supporting reliable solar panel operation. Their low forward voltage drop can help reduce conduction losses, while their bypass function can limit certain shading-related risks. However, achieving the best results requires careful attention to current ratings, reverse voltage, leakage current, thermal performance, and environmental conditions.
Good-Ark’s long history in the diode industry and its commitment to customer cooperation make the company relevant to manufacturers exploring semiconductor components for solar applications. By evaluating technical specifications, verifying product suitability, and maintaining strong quality standards, solar equipment producers can make more confident component choices. As global demand for renewable energy continues to grow, dependable diode technology will remain an important part of building efficient, durable, and reliable solar installations.
